NCS12S1205C - Murata Electronics

Description: Murata Power Solutions NCS12 12W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout 5V dc

Download NCS12S1205C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

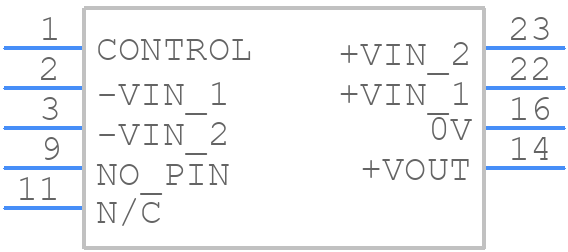

NCS12S1205C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

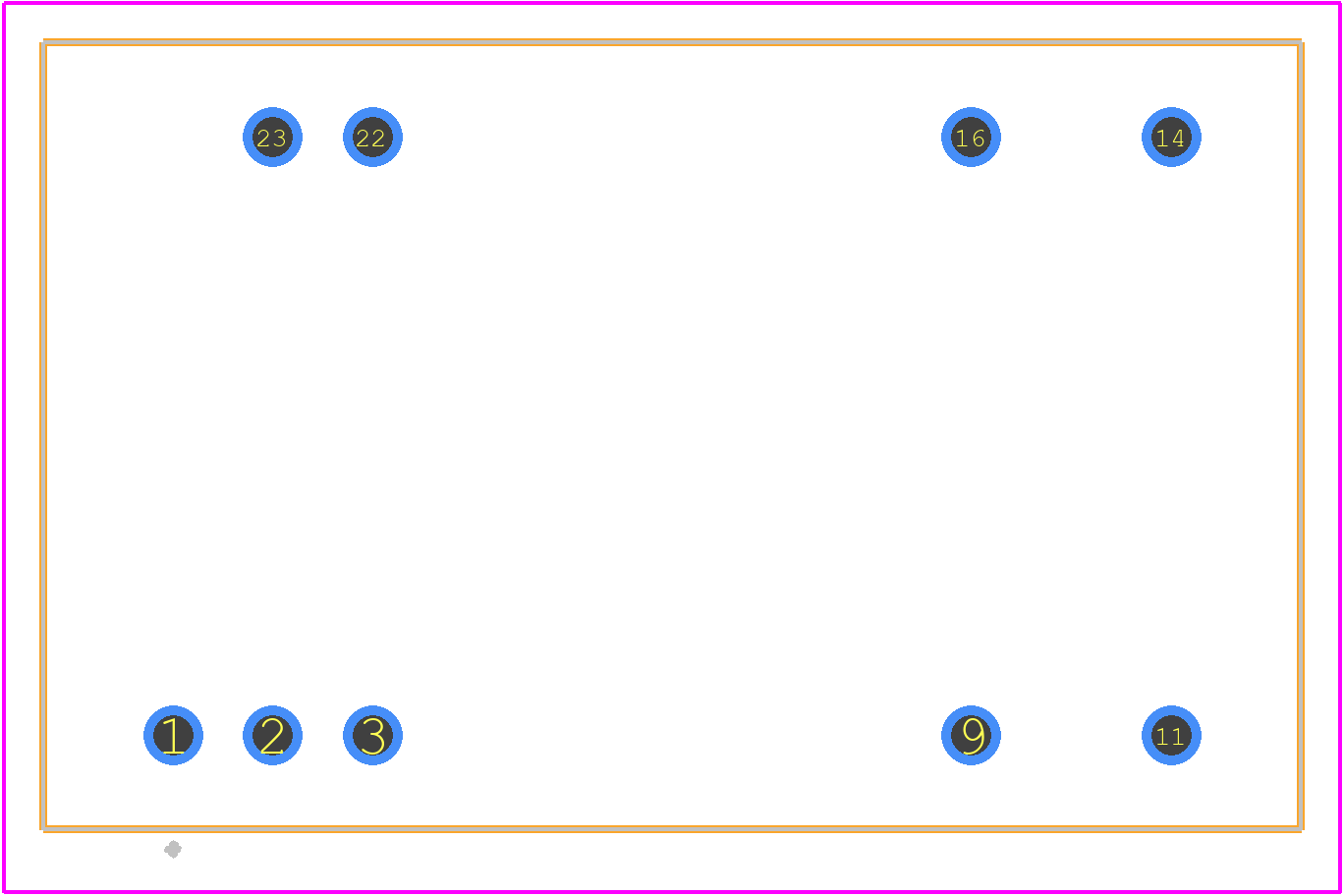

NCS12S1205C - Murata Electronics PCB footprint - Other - Other - NCS12
click to zoom
3D Models
NCS12S1205C - Murata Electronics - 3D model - Other - NCS12
click to zoom

NCS12S1205C Details

  • Manufacturer Part Number:

    NCS12S1205C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    PACKAGE-23/8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    1

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    C-UL-US, UL

  • Efficiency (Main Output):

    88%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P8

  • Length:

    32 mm

  • Line Regulation-Max:

    0.1%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.4 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8/23LEAD,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.04418 Vrms

  • Seated Height-Max:

    11 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.022 s

  • Width:

    20 mm

NCS12S1205C Frequently Asked Questions (FAQs)

  • Murata recommends a symmetrical layout with the oscillator at the center, and the output traces should be routed away from the input traces to minimize noise coupling. A ground plane under the oscillator is also recommended to reduce electromagnetic interference.
  • To ensure reliable startup, Murata recommends applying power to the VDD pin before the enable pin (EN). The enable pin should be pulled high after the power supply has stabilized. Additionally, a 0.1uF decoupling capacitor should be placed close to the VDD pin.
  • The maximum frequency deviation of the NCS12S1205C over the operating temperature range of -40°C to 85°C is ±100 ppm.
  • The NCS12S1205C is designed to operate with a 1.8V to 3.3V power supply. While it may be possible to use it with a different voltage supply, Murata does not guarantee its performance or reliability outside of the specified voltage range.
  • To troubleshoot issues with the NCS12S1205C, check the power supply voltage, ensure the enable pin is properly driven, and verify the output frequency using an oscilloscope. If issues persist, consult the Murata application note or contact Murata support for further assistance.
