NCS2-771+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MOUNT / RoHS

Download NCS2-771+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

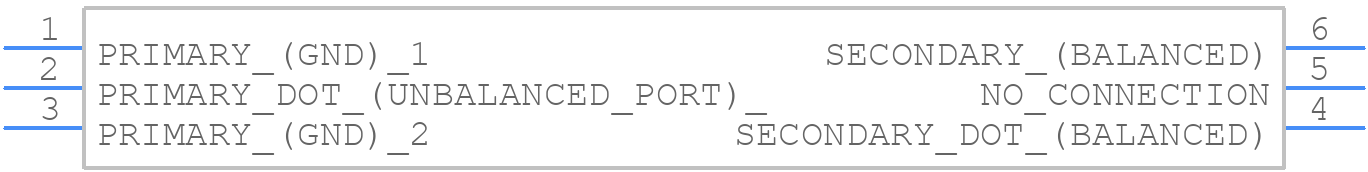

NCS2-771+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS2-771+ - Mini-Circuits PCB footprint - Other - Other - NCS2-771+-1
click to zoom
3D Models
NCS2-771+ - Mini-Circuits - 3D model - Other - NCS2-771+-1
click to zoom

NCS2-771+ Details

  • Manufacturer Part Number:

    NCS2-771+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.08

  • Cut-off Frequency-Max:

    770 MHz

  • Cut-off Frequency-Min:

    240 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    0.8 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS2-771+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The NCS2-771+ has a nominal impedance of 50 ohms. To impedance match, you can use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator on their website to help with the design.
  • The maximum power handling of the NCS2-771+ is not explicitly stated in the datasheet. However, according to Mini-Circuits' application engineers, the device can handle up to 1W of continuous power and 2W of peak power. It's essential to derate the power handling based on the operating frequency and temperature.
  • While the NCS2-771+ is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device may not be optimized for high-speed switching, and the switching frequency should be limited to below 100 MHz to avoid excessive power dissipation.
  • Common issues with the NCS2-771+ include poor return loss, high insertion loss, and overheating. To troubleshoot, check the PCB layout and footprint, ensure proper impedance matching, and verify the power handling. Also, inspect the device for signs of physical damage or overheating.
