NCS2002SN1T1G - onsemi

Description: Obsolete - Operational Amplifier with sub-one volt operation, shutdown pin, Rail to Rail I/O

Download NCS2002SN1T1G Model

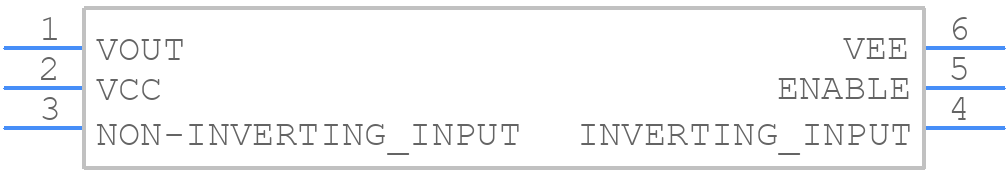

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2002SN1T1G - onsemi PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TSOP-6 CASE318G-02 ISSUE V
click to zoom
3D Models
NCS2002SN1T1G - onsemi  - 3D model - SOT23 (6-Pin) - TSOP-6 CASE318G-02 ISSUE V
click to zoom

NCS2002SN1T1G Details

  • Manufacturer Part Number:

    NCS2002SN1T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    318G-02

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    82 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -3.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.85 V/us

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    3.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    900

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    1.5 mm

NCS2002SN1T1G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature below 150°C.
  • The maximum allowed voltage on the input pins is 6V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 2.7V to 5.5V to ensure reliable operation and prevent damage to the device.
  • The NCS2002SN1T1G is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if you must use it in such an environment, ensure that the device is properly sealed or coated to prevent moisture ingress, and follow the recommended storage and handling procedures.
  • The recommended ESD protection for the NCS2002SN1T1G involves using a human body model (HBM) ESD protection circuit with a minimum of 2kV rating. Additionally, follow proper handling and storage procedures to prevent ESD damage.
