NCS20032DR2G - onsemi

Description: Unity Gain Bandwidth: 7 MHz at VS = 5 V; Fast Slew Rate: 8 V/?µs rising, 12.5 V/µ?s falling at VS = 5 V; Rail−to−Rail Output; No Output Phase Reversal for Over−Driven Input Signals; Low Offset Voltage: 0.5 mV typical; Low Input Bias Current: 1 pA typical; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

Download NCS20032DR2G Model

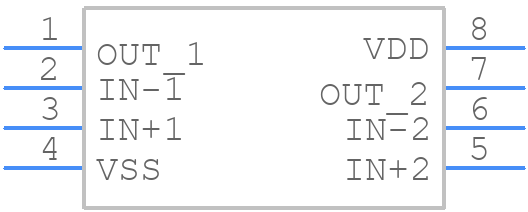

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS20032DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8NB
click to zoom
3D Models
NCS20032DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8NB
click to zoom

NCS20032DR2G Details

  • Manufacturer Part Number:

    NCS20032DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.8

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Common-mode Reject Ratio-Nom:

    80 dB

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    6 V/us

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    5000

  • Width:

    3.9 mm

NCS20032DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS20032DR2G should include a solid ground plane, decoupling capacitors close to the device, and a separate analog and digital ground plane. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • To ensure proper biasing, follow the recommended biasing circuit in the datasheet. Make sure to use a stable voltage source, and decouple the supply lines with capacitors. Additionally, ensure the input signals are within the recommended voltage range, and the output is properly terminated.
  • The NCS20032DR2G is rated for operation from -40°C to 125°C. However, it's essential to consider the thermal design and heat dissipation in your system to ensure reliable operation within this temperature range.
  • To troubleshoot issues, start by verifying the power supply and biasing conditions. Check the input and output signals using an oscilloscope, and ensure the device is properly terminated. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • The NCS20032DR2G is a commercial-grade device, but onsemi offers a range of high-reliability and aerospace-grade devices. Consult with onsemi's sales team or a qualified distributor to determine the best device for your specific application.
