NCS2004AMUTAG - onsemi

Description: Obsolete - Operational Amplifier, High Slew Rate, Rail to Rail Output

Download NCS2004AMUTAG Model

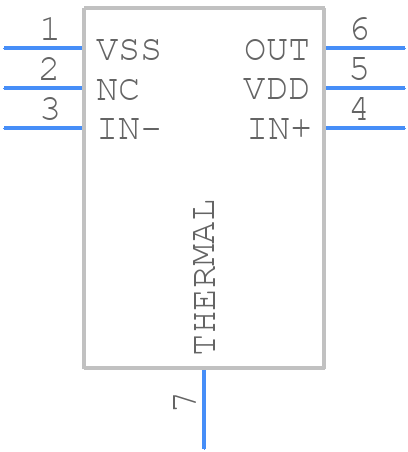

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS2004AMUTAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - UDFN6, 1.6x1.6, 0.5P CASE 517AP−01 ISSUE O
click to zoom
3D Models
NCS2004AMUTAG - onsemi  - 3D model - Small Outline No-lead - UDFN6, 1.6x1.6, 0.5P CASE 517AP−01 ISSUE O
click to zoom

NCS2004AMUTAG Details

  • Manufacturer Part Number:

    NCS2004AMUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    UDFN-6

  • Package Description:

    UDFN-6

  • Manufacturer Package Code:

    517AP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00015 µA

  • Bias Current-Max (IIB) @25C:

    0.001 µA

  • Common-mode Reject Ratio-Min:

    69 dB

  • Common-mode Reject Ratio-Nom:

    140 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    5000 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    1.6 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -8.25 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.06,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.55 mm

  • Slew Rate-Min:

    1.8 V/us

  • Slew Rate-Nom:

    2.6 V/us

  • Supply Current-Max:

    1 mA

  • Supply Voltage Limit-Max:

    8.25 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3500

  • Voltage Gain-Min:

    56234.13252

  • Wideband:

    NO

  • Width:

    1.6 mm

NCS2004AMUTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCS2004AMUTAG should minimize parasitic inductance and capacitance. Keep the input and output traces short and away from each other, and use a solid ground plane to reduce noise. Also, ensure that the decoupling capacitors are placed close to the device.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum allowed input voltage ripple for the NCS2004AMUTAG is typically 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and stability.
  • The NCS2004AMUTAG is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the NCS2004AMUTAG, start by checking the input voltage, output current, and temperature. Verify that the device is operated within its specified range and that the PCB layout is correct. Use an oscilloscope to check for noise and ripple on the input and output. Also, check for any signs of overheating or physical damage to the device.
