Description:Rail−To−Rail Output; Wide Supply Range: 2.7 V to 36 V; Wide Bandwidth: 3 MHz typical at VS = 2.7 V; High Slew Rate: 2.8 V/µs typical at VS = 2.7 V; Low Supply Current: 405 µA per channel at VS = 2.7 V; Low Input Bias Current: 5 pA typical; Wide Temperature Range: −40°C to 125°C; Available in a variety of packages; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND8327/D.
The NCS20074DR2G requires a specific biasing scheme to achieve optimal performance. A recommended biasing circuit is shown in the datasheet, but it's essential to ensure that the voltage supply is stable and noise-free. Additionally, the input and output impedance should be matched to minimize signal reflections.
While the datasheet specifies a maximum operating frequency of 2.7 GHz, the actual frequency limit depends on the specific application and PCB layout. In general, the device can operate up to 3.5 GHz or higher with proper design and layout considerations.
The NCS20074DR2G has a power-down mode that can be controlled through the EN pin. When the EN pin is low, the device enters a low-power state, reducing current consumption. However, it's essential to ensure that the input signals are properly terminated and the output is not loaded during power-down to prevent damage.
The NCS20074DR2G has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a heat sink or a PCB with a thermal relief pattern. The datasheet provides thermal resistance values, but it's essential to consider the specific application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS20074DR2G Overview

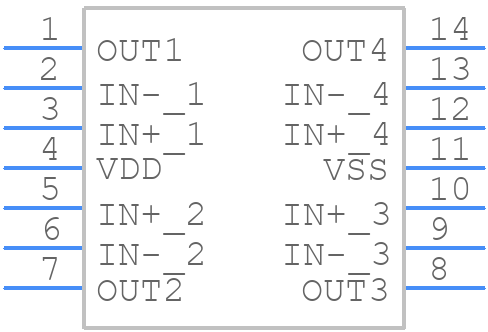

Use the download button to access the NCS20074DR2G schematic symbol, PCB footprint, and 3D model.
