NCV20074DR2G - onsemi

Description: Rail−To−Rail Output; Wide Supply Range: 2.7 V to 36 V; Wide Bandwidth: 3 MHz typical at VS = 2.7 V; High Slew Rate: 2.8 V/µs typical at VS = 2.7 V; Low Supply Current: 405 µA per channel at VS = 2.7 V; Low Input Bias Current: 5 pA typical; Wide Temperature Range: −40°C to 125°C; Available in a variety of packages; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

Download NCV20074DR2G Model

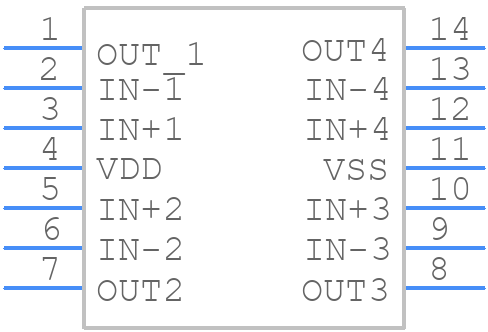

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV20074DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NCV20074DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NCV20074DR2G Details

  • Manufacturer Part Number:

    NCV20074DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Voltage Limit-Max:

    40 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3200

  • Width:

    3.9 mm

NCV20074DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV20074DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV20074DR2G operates within the recommended junction temperature range, use a thermal pad or heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering and rework.
  • Exceeding the maximum ratings for the NCV20074DR2G can lead to reduced reliability, permanent damage, or even device failure. It's essential to operate the device within the recommended specifications to ensure reliable operation and prevent premature failure.
  • To troubleshoot issues with the NCV20074DR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes or contact onsemi support.
  • Yes, the NCV20074DR2G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to ensure that the device is properly qualified and validated for the specific application.
