NCS214RMUTAG - onsemi

Description: CURRENT SENSE AMP G=100

Download NCS214RMUTAG Model

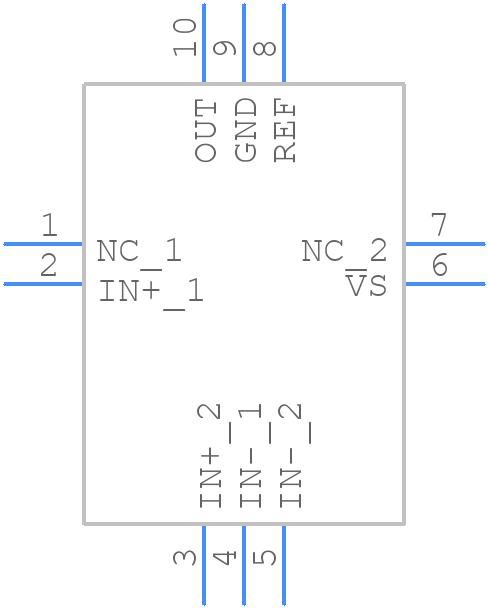

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS214RMUTAG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UQFN10 CASE 488AT-01
click to zoom
3D Models
NCS214RMUTAG - onsemi  - 3D model - Quad Flat No-Lead - UQFN10 CASE 488AT-01
click to zoom

NCS214RMUTAG Details

  • Manufacturer Part Number:

    NCS214RMUTAG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-10

  • Manufacturer Package Code:

    488AT

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2018-05-14

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XQCC-N10

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.4 mm

NCS214RMUTAG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, make sure the output voltage is within the recommended range of 0.8V to 3.3V.
  • The maximum input voltage that the NCS214RMUTAG can handle is 5.5V. Exceeding this voltage may damage the device.
  • The power dissipation of the NCS214RMUTAG can be calculated using the formula: Pd = (Vin - Vout) x Iout. Make sure to consider the thermal resistance and junction temperature to ensure reliable operation.
  • A 1uF to 10uF ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close as possible to the VIN pin.
