A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad. Refer to onsemi's application note AND9233/D for more details.
To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the IC and the heat sink. Also, consider derating the output current and voltage according to the temperature derating curve in the datasheet.
The maximum allowed voltage on the EN pin is VCC + 0.3V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a voltage divider to ensure the EN pin voltage stays within the specified range.
While the NCS2553DR2G can be used as a voltage regulator, it's not recommended due to its limited output current capability and lack of built-in voltage regulation features. Instead, consider using a dedicated voltage regulator IC for voltage regulation applications.
To troubleshoot issues with the device not turning on or off properly, check the EN pin voltage, ensure the input voltage is within the specified range, and verify the output stage is properly connected. Also, check for any potential layout or PCB issues that may be affecting the device's operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS2553DR2G Overview

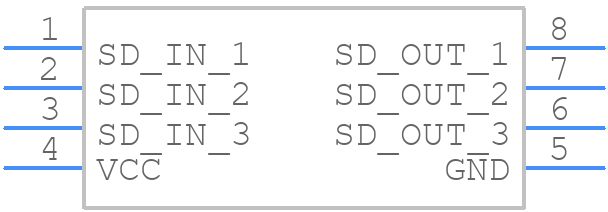

Use the download button to access the NCS2553DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCS25,
or try a keyword search, such as Audio/Video Amplifiers
