Description:Enhanced Pop and Click Suppression Function; Offset Voltage: 400 µV; Outputs pass 8 kV contact discharge according to IEC61000-4-2 under application conditions; Available in a TSSOP-14 package; NOCAPTM; Supply voltage from 2.2V to 5.5V; SNR = 105dB Typical Vn of 8 µVrms, A-Weighted THD+N < 0.001% at 1 kHz; Output Voltage into 600 Ω Load: 2 VRMS with 3.3V Supply Voltage 3 VRMS with 5V Supply Voltage ; Adjustable gain from ±1V/V to ±10V/V; Differential Input ; High PSRR: 90 dB; External Under-Voltage Detectio
A good PCB layout for the NCS2632DTBR2G involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR output capacitor, and add a small resistor (e.g., 10 ohms) in series with the output capacitor. Additionally, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
The maximum output current of the NCS2632DTBR2G is 2A. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure the device is operated within its specified temperature range.
To protect the NCS2632DTBR2G from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to detect and respond to voltage faults. Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
The recommended input capacitor value for the NCS2632DTBR2G is 10uF to 22uF, with a voltage rating of 10V or higher. A low-ESR capacitor is recommended to minimize voltage ripple and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCS2632DTBR2G Overview

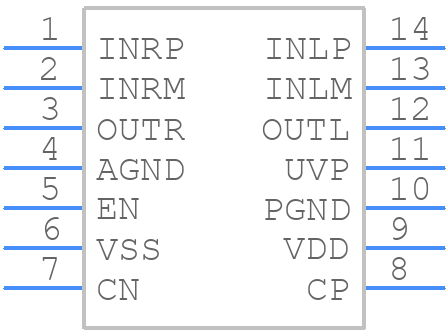

Use the download button to access the NCS2632DTBR2G schematic symbol, PCB footprint, and 3D model.
