NCS37010MNTWG - onsemi

Description: Full self test and electronic lockout; Self syncing internal oscillator adjusts to AC mains frequency to guarantee full resolution on 50 and 60 Hz distribution systems; Randomized testing sequence to noise sensitivity and potential interactions on the AC mains; High SCR drive current (up to 5 mA)

Download NCS37010MNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

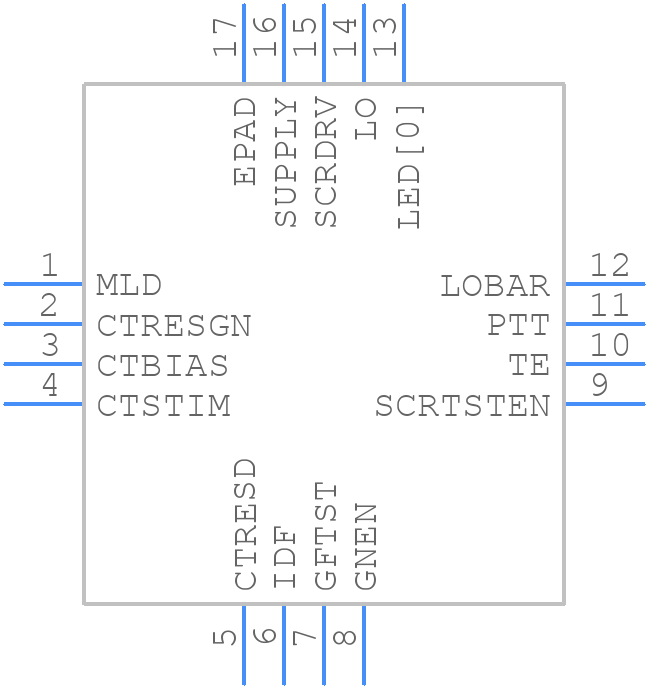

NCS37010MNTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS37010MNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3, 0.5P
click to zoom
3D Models
NCS37010MNTWG - onsemi - 3D model - Quad Flat No-Lead - QFN16 3x3, 0.5P
click to zoom

NCS37010MNTWG Details

  • Manufacturer Part Number:

    NCS37010MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Manufacturer Package Code:

    485FQ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    30 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

NCS37010MNTWG Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2oz copper thickness and a thermal relief pattern are recommended to ensure good heat dissipation.
  • Ensure that the device is operated within the recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Avoid exceeding the maximum junction temperature (Tj) of 150°C.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
  • Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use a common-mode choke or ferrite bead on the input lines to reduce EMI emissions.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for output filtering. The capacitor should be placed as close to the device as possible to minimize parasitic inductance.
