NCS4-521+ - Mini-Circuits

Description: Signal Conditioning RF XFMR / SURF MT / RoHS

Download NCS4-521+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

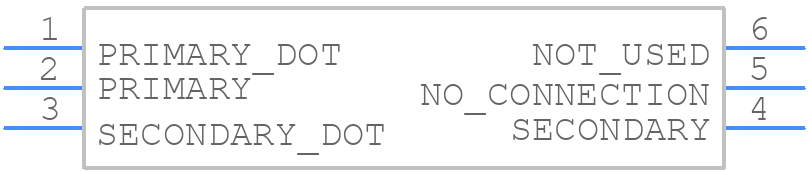

Symbol
NCS4-521+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
NCS4-521+ - Mini-Circuits PCB footprint - Other - Other - NCS4-521+-1
click to zoom
3D Models
NCS4-521+ - Mini-Circuits - 3D model - Other - NCS4-521+-1
click to zoom

NCS4-521+ Details

  • Manufacturer Part Number:

    NCS4-521+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Cut-off Frequency-Max:

    520 MHz

  • Cut-off Frequency-Min:

    223 MHz

  • Height:

    0.84 mm

  • Insertion Loss:

    1.5 dB

  • Length:

    2 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    1.24 mm

NCS4-521+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the device. The device should be placed on a thermal pad connected to the ground plane. A detailed application note is available from Mini-Circuits.
  • The NCS4-521+ requires a bias tee or a DC block to provide the necessary DC voltage and current. The recommended bias voltage is 5V, and the recommended bias current is 100mA. The device should be biased through a 10kΩ resistor to prevent over-biasing.
  • The NCS4-521+ is rated for operation from -40°C to +85°C. However, the device's performance may degrade at temperatures above +70°C. It is recommended to derate the device's performance by 0.5dB per 10°C above +70°C.
  • Yes, the NCS4-521+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, the device's input and output matching networks must be redesigned to accommodate the push-pull configuration.
  • The recommended input and output matching networks for the NCS4-521+ are provided in the device's datasheet. However, the actual matching network may need to be optimized based on the specific application and PCB layout. Mini-Circuits provides a matching network design tool to help with this process.
