NCS4333DTBR2G - onsemi

Description: Low Offset Voltage: 30 ?µ?V max for NCS4333; Zero Drift: 0.07 ?µ?V/°C max; Quiescent Current per Channel: 17 ?µ?A Typical at 3.3 V Supply; Low Noise: 1.1 µ?Vpp, 0.1 Hz to 10 Hz; Supply Voltage: 1.8 V to 5.5 V; Rail−to−Rail Input and Output

Download NCS4333DTBR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

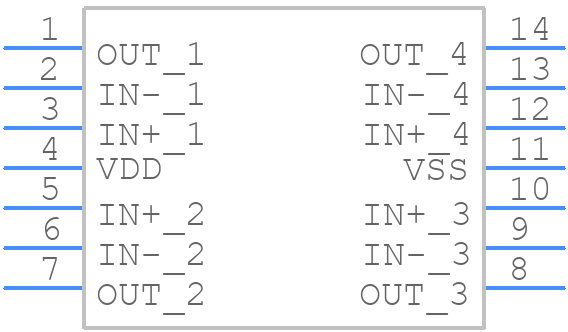

NCS4333DTBR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCS4333DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1
click to zoom
3D Models
NCS4333DTBR2G - onsemi - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_1
click to zoom

NCS4333DTBR2G Details

  • Manufacturer Part Number:

    NCS4333DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2019-11-11

  • Manufacturer:

    onsemi

  • YTEOL:

    6.22

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0008 µA

  • Input Offset Voltage-Max:

    30 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Slew Rate-Nom:

    0.15 V/us

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    199526.23

  • Wideband:

    NO
