NCS7101SN1T1G - onsemi

Description: Low Voltage, Single Supply Operation (1.8 V and Ground to 10 V and Ground); 1.0 pA Input Bias Current; Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V; Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V; No Phase Reversal on the Output for Over-Driven Input Signals; Input Offset Trimmed to 1.0 mV; Low Supply Current (ID = 1.0 mA); Works Down to Two Discharged NiCd Battery Cells; ESD Protected Inputs Up to 2.0 kV

Download NCS7101SN1T1G Model

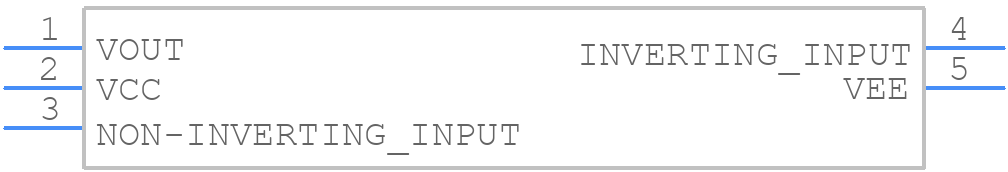

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCS7101SN1T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-23-5-ren1
click to zoom
3D Models
NCS7101SN1T1G - onsemi  - 3D model - SOT23 (5-Pin) - SOT-23-5-ren1
click to zoom

NCS7101SN1T1G Details

  • Manufacturer Part Number:

    NCS7101SN1T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Nom:

    60 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.7 V/us

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    16000

  • Wideband:

    NO

  • Width:

    1.5 mm

NCS7101SN1T1G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • Exceeding the maximum TJ rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect against electrostatic discharge. Follow proper PCB design and handling practices to minimize the risk of ESD damage.
  • When paralleling multiple devices, ensure that each device has its own decoupling capacitor and that the PCB layout is designed to minimize current imbalance and thermal mismatch between devices. Also, consider using a current-sharing technique, such as active current balancing, to ensure equal current distribution.
