A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper area.
To ensure accurate temperature readings, the device should be calibrated during the manufacturing process. Additionally, the device should be placed in a location that is representative of the temperature being measured, and the thermal response time should be considered when designing the system.
The maximum allowable voltage on the VDD pin is 3.6V. Exceeding this voltage may cause damage to the device.
The device should be handled with care during soldering and rework to avoid damage. The device should be stored in a static-protective bag, and anti-static wrist straps or mats should be used when handling the device. Soldering temperatures should be kept below 260°C.
The recommended operating temperature range for the NCT214MT3R2G is -40°C to 125°C. Operating the device outside of this range may affect its accuracy and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCT214MT3R2G Overview

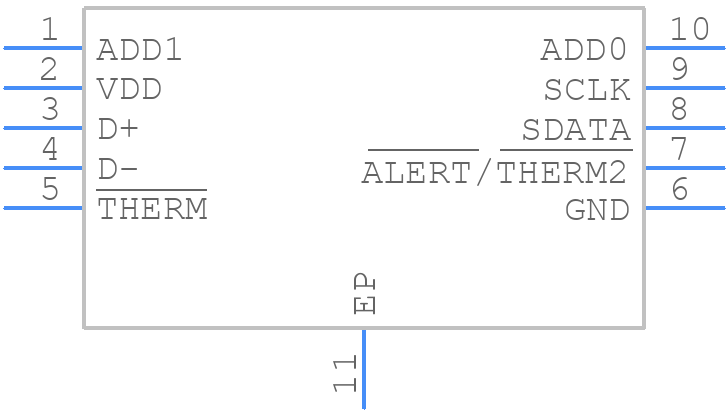

Use the download button to access the NCT214MT3R2G schematic symbol, PCB footprint, and 3D model.
