NCT72CMNR2G - onsemi

Description: ON Semiconductor NCT72CMNR2G, Temperature Monitor Maximum of +150 °C ±1°C Serial-I2C, SMBus, 8-Pin DFN

Download NCT72CMNR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

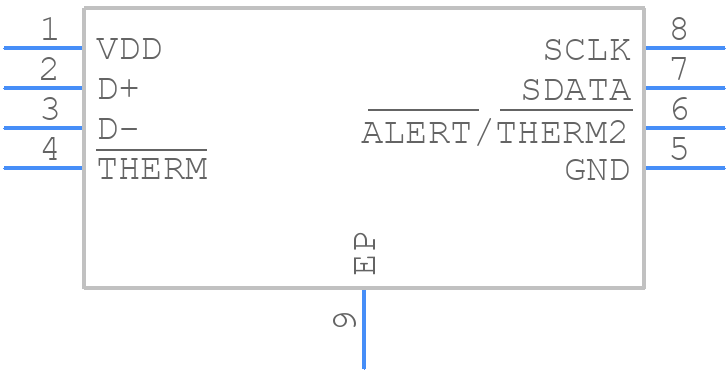

NCT72CMNR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCT72CMNR2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 3x3, 0.5P
click to zoom
3D Models
NCT72CMNR2G - onsemi - 3D model - Small Outline No-lead - DFN8 3x3, 0.5P
click to zoom

NCT72CMNR2G Details

  • Manufacturer Part Number:

    NCT72CMNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 3x3, 0.5P

  • Pin Count:

    8

  • Manufacturer Package Code:

    506BJ

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.875 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.35 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Termination Type:

    SOLDER
