- Part Number NCT7802Y
- Manufacturer Nuvoton
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - NAU88C10
- Released Date May 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NCT7802Y Details
-
Manufacturer Part Number:
NCT7802Y
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
8
-
Adjustable Threshold:
NO
-
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
-
JESD-30 Code:
S-XQCC-N20
NCT7802Y Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the NCT7802Y is -40°C to 125°C.
-
The NCT7802Y has a built-in fan control feature. To configure it, you need to set the FAN_CTRL pin high or low to enable or disable the fan, and adjust the FAN_PWM pin to control the fan speed.
-
The maximum current rating for the NCT7802Y's voltage regulator outputs is 3A for VCC and 1A for VTT.
-
The NCT7802Y has a built-in thermal monitoring feature that can detect temperature changes. To use it, connect a thermistor to the THERM pin and configure the device to generate an interrupt when the temperature exceeds a certain threshold.
-
Yes, the NCT7802Y can operate with a 5V power supply, but it's recommended to use a 3.3V power supply for optimal performance and to reduce power consumption.
Trust Checks
Community Provided
System Verified
Community Approved
NCT7802Y Overview

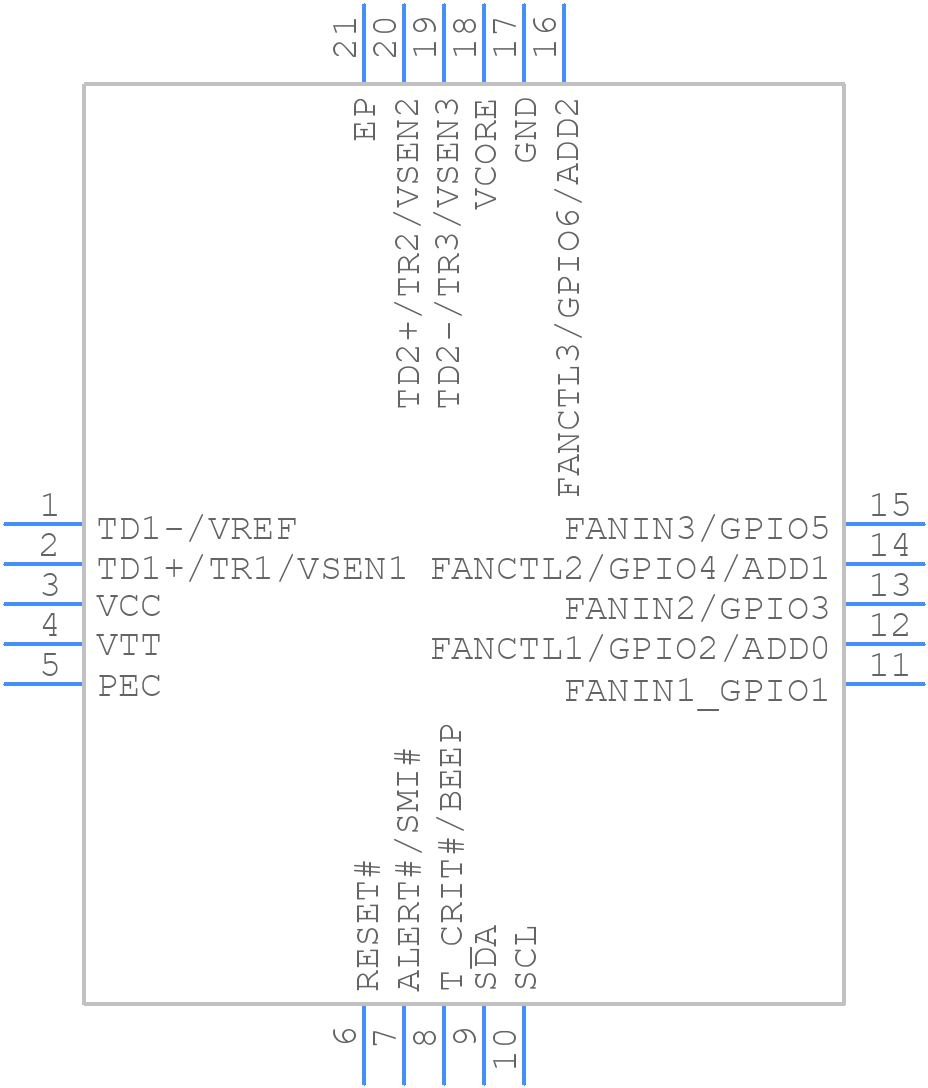

Use the download button to access the NCT7802Y schematic symbol, PCB footprint, and 3D model.
