Description:Input voltage up to 100V; 2 A Output Drive Capability; 1.25 V +/-2.5% feedback voltage across temperature; External Frequency Synchronization; Programmable switching frequency up to 500 kHz; AEC-Q100 Qualified
For optimal thermal performance, it is recommended to have a solid copper plane under the device, and to use thermal vias to connect the plane to the thermal pad of the device. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal interface material (TIM) between the device and the heat sink can also improve thermal performance.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, using a heat sink with a high thermal conductivity, and applying a thermal interface material (TIM) between the device and the heat sink can help to reduce the junction temperature and improve reliability.
The recommended input and output capacitors for the NCV1034DR2G are typically 10uF to 22uF X7R or X5R ceramic capacitors with a voltage rating of 25V or higher. The capacitor values and types may vary depending on the specific application and operating conditions.
To troubleshoot issues with the device not regulating the output voltage, check the input voltage, output load, and feedback resistors for correct values and connections. Ensure that the device is properly biased and that the output voltage is within the specified range. Also, check for any signs of overheating, and verify that the device is not in a fault condition.
The recommended soldering profile for the NCV1034DR2G is a reflow profile with a peak temperature of 260°C, and a dwell time above 220°C of 30-60 seconds. The soldering process should be done in a nitrogen atmosphere to prevent oxidation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV1034DR2G Overview

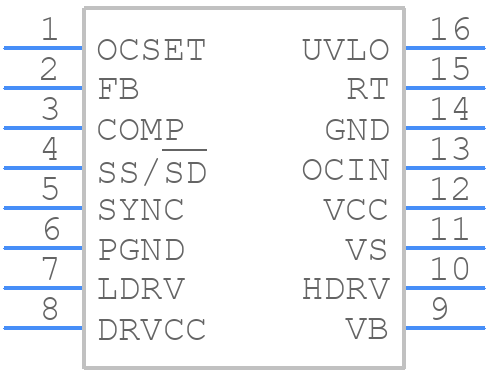

Use the download button to access the NCV1034DR2G schematic symbol, PCB footprint, and 3D model.
