Part Image

NCV1060BD100R2G - onsemi

Description: Built−in 670 V MOSFET with RDS(on) of 34 Ω; Large Creepage Distance Between High−voltage Pins; Adjustable Peak Current up to 250 mA; Direct Feedback connection for non-isolated converter; Internal and Adjustable Over Power Protection (OPP) Circuit; Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Current−Mode Fixed Frequency Operation – 60 or 100 kHz; With (A version) or without (B version) AC Input Voltage Line Detection; Frequency Jittering (including during frequency foldback mod

Download NCV1060BD100R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

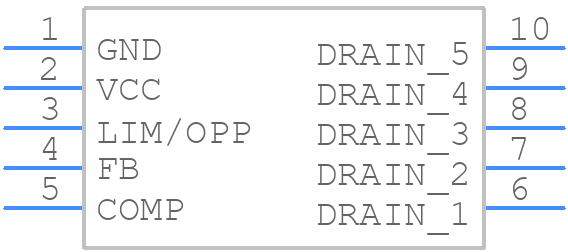

Symbol
NCV1060BD100R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV1060BD100R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV1060BD100R2G
click to zoom
3D Models
NCV1060BD100R2G - onsemi - 3D model - Small Outline Packages - NCV1060BD100R2G
click to zoom

NCV1060BD100R2G Details

  • Manufacturer Part Number:

    NCV1060BD100R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-10 NB

  • Package Description:

    SOIC-10

  • Manufacturer Package Code:

    751BQ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.52 A

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    100 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV1060BD100R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 2.5 mm x 2.5 mm, and connecting it to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet, and to ensure good thermal design and heat sinking.
  • The maximum allowed voltage transient on the input pins is typically 10% above the maximum recommended operating voltage, but it is recommended to consult the datasheet and application notes for specific guidance.
  • To protect the device from EOS and ESD, it is recommended to follow proper handling and storage procedures, use ESD protection devices such as TVS diodes, and ensure that the PCB design includes adequate ESD protection measures.
  • The recommended input capacitor value and type for optimal performance depend on the specific application and operating conditions, but a general guideline is to use a low-ESR ceramic capacitor with a value of 10-22 uF.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV1060BD100R2G Overview

Use the download button to access the NCV1060BD100R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV10, or try a keyword search, such as Switching Regulator or Controllers
