Description:Built−in 670 V MOSFET with RDS(on) of 11.4 Ω; Large Creepage Distance Between High−voltage Pins; Adjustable Peak Current up to 650 mA; Direct Feedback connection for non-isolated converter; Internal and Adjustable Over Power Protection (OPP) Circuit; Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Jittering (including during frequency foldback mode); Current−Mode Fixed Frequency Operation – 60 or 100 kHz; Frequency Foldback Operation; AE C qualfified
A good PCB layout for optimal thermal performance would be to have a solid copper plane on the bottom layer, with multiple vias connecting it to the top layer. This helps to dissipate heat efficiently. Additionally, keeping the component away from other heat sources and having a good airflow around the component can also help.
To ensure the device is properly biased, make sure to follow the recommended biasing scheme outlined in the datasheet. This typically involves connecting the input pins to a stable voltage source, and ensuring the output pins are properly terminated. Additionally, it's essential to follow proper PCB design practices to minimize noise and ensure signal integrity.
Exceeding the maximum junction temperature can lead to a reduction in the device's lifespan, and in extreme cases, can cause permanent damage. It's essential to ensure the device is operated within the recommended temperature range to maintain its performance and reliability.
To troubleshoot issues with the device, start by verifying the PCB layout and component placement. Check for any signs of overheating, and ensure the device is properly biased. Use oscilloscopes and other diagnostic tools to identify any unusual signal patterns or noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Operating the device beyond its recommended frequency can lead to reduced performance, increased power consumption, and potential instability. It's essential to ensure the device is operated within its recommended frequency range to maintain its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV1063AD100R2G Overview

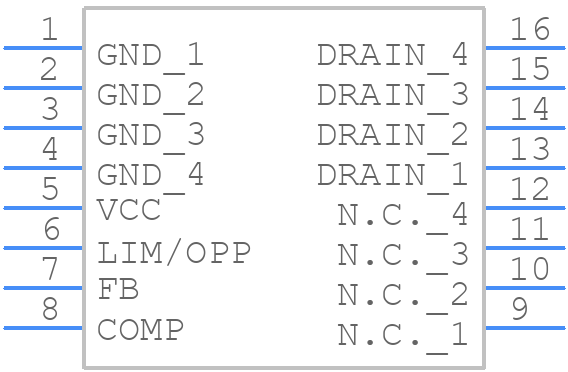

Use the download button to access the NCV1063AD100R2G schematic symbol, PCB footprint, and 3D model.
