A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any obstacles.
To ensure reliable operation at high temperatures, ensure that the device is operated within the recommended temperature range (up to 150°C for the NCV1124DR2G). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Also, consider using a thermal monitoring and control system to prevent overheating.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 50V or higher, placed as close to the VIN pin as possible. The recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 50V or higher, placed as close to the VOUT pin as possible.
The enable pin (EN) is an active-high input that enables or disables the device. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to control the device's operation. When EN is high, the device is enabled; when EN is low, the device is disabled. Ensure that the EN pin is properly terminated and decoupled to prevent noise and oscillations.
To ensure EMI and EMC compliance, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Also, ensure that the device is operated within its recommended specifications, and consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV1124DR2G Overview

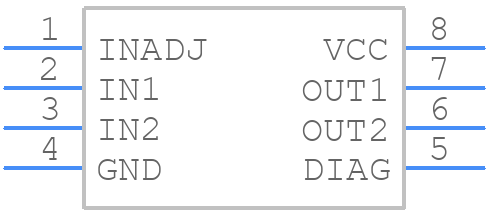

Use the download button to access the NCV1124DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV11,
or try a keyword search, such as Network Interfaces
