NCV12711ADNR2G - onsemi

Description: 1 A Source / Sink Gate Driver; Several Fault Protections: - Over-Power Protection - Overload Protection with 30 ms Overload Timer - NTC-Compatible Fault Interface for Thermal Protection - Output OVP Fault Interface - Fault Auto-recovery Mode with 1 s Auto-recovery Period; Wide Input Range (4 – 45 V in MSOP10); Current Mode Control with Integrated Slope Compensation; Single Resistor Programmable Oscillator; Input Voltage UVLO with Hysteresis; Adjustable Soft−Start on Peak Current and Frequency

Download NCV12711ADNR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

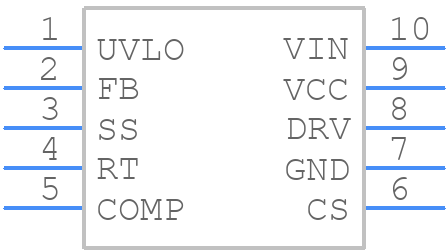

Symbol
NCV12711ADNR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV12711ADNR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MSOP10, 3x3 CASE 846AE ISSUE A
click to zoom
3D Models
NCV12711ADNR2G - onsemi - 3D model - Small Outline Packages - MSOP10, 3x3 CASE 846AE ISSUE A
click to zoom

NCV12711ADNR2G Details

  • Manufacturer Part Number:

    NCV12711ADNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP-10

  • Manufacturer Package Code:

    846AE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    45 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV12711ADNR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for NCV12711ADNR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive material for the PCB, and keeping the device within its recommended operating temperature range.
  • The maximum allowed voltage on the EN pin of NCV12711ADNR2G is 6V. Exceeding this voltage may damage the device.
  • Yes, NCV12711ADNR2G can be used in switching regulator applications. However, it's essential to ensure that the device is properly bypassed and that the input and output capacitors are selected to meet the requirements of the specific application.
  • To troubleshoot issues with NCV12711ADNR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly bypassed and that the input and output capacitors are suitable for the application. Check for any signs of overheating, and ensure that the device is within its recommended operating temperature range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV12711ADNR2G Overview

Use the download button to access the NCV12711ADNR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV12, or try a keyword search, such as Switching Regulator or Controllers
