NCV2001SN2T1G - onsemi

Description: 0.9 V Guaranteed Operation; Rail-to-Rail Common Mode Input Voltage Range; Rail-to-Rail Output Drive Capability; No Output Phase Reversal for Over-Driven Input Signals; 0.5 mV Trimmed Input Offset Typical; 10 pA Input Bias Current; 1.4 MHz Unity Gain Bandwidth at +/- 2.5 V, 1.1 MHz at +/- 0.5 V

Download NCV2001SN2T1G Model

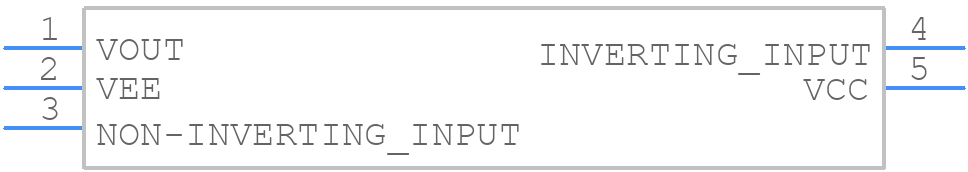

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV2001SN2T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOP-5 CASE 483-02 (issue K)
click to zoom
3D Models
NCV2001SN2T1G - onsemi  - 3D model - SOT23 (5-Pin) - TSOP-5 CASE 483-02 (issue K)
click to zoom

NCV2001SN2T1G Details

  • Manufacturer Part Number:

    NCV2001SN2T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Package Description:

    SOT-23, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.82

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    70 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -3.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -2.5 V

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP5/6,.08

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    6 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    3.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1400

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    1.25 mm

NCV2001SN2T1G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2001SN2T1G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV2001SN2T1G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended operating ranges.
  • The NCV2001SN2T1G has a thermal resistance of 30°C/W. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device.
  • To troubleshoot issues with the NCV2001SN2T1G, check the input voltage, output voltage, and output current. Verify that the device is properly connected and that the input and output capacitors are of the correct value and type. Also, check for any signs of overheating or physical damage.
  • The NCV2001SN2T1G has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or leads.
