Part Image

NCV20084DR2G - onsemi

Description: Rail−to−Rail Input and Output; Wide Supply Range: 1.8 to 5.5 V; Wide Bandwidth: 1.2 MHz; Low Input Offset Voltage: 3.5mV; Low Supply Current: 42 µA per Channel at VS = 1.8 V; NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Download NCV20084DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

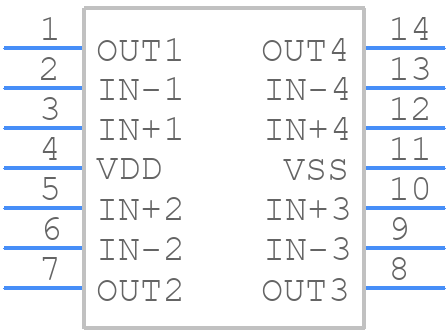

Symbol
NCV20084DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV20084DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC - 14 NB
click to zoom
3D Models
NCV20084DR2G - onsemi - 3D model - Small Outline Packages - SOIC - 14 NB
click to zoom

NCV20084DR2G Details

  • Manufacturer Part Number:

    NCV20084DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2018-12-21

  • Manufacturer:

    onsemi

  • YTEOL:

    6.52

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Common-mode Reject Ratio-Min:

    53 dB

  • Common-mode Reject Ratio-Nom:

    76 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.0011 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    25 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    0.4 V/us

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1200

  • Voltage Gain-Min:

    19952.62

  • Wideband:

    NO

  • Width:

    3.9 mm

NCV20084DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a thick copper plane, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and provide adequate airflow. Additionally, consider using a heat sink or a thermally conductive pad to dissipate heat.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To troubleshoot OVP and UVP issues, start by verifying the input voltage and ensuring it's within the recommended range. Check the device's pinout and connections to ensure they're correct. Use an oscilloscope to monitor the input voltage and device behavior. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Not using the recommended input capacitor (Cin) value can lead to instability, oscillations, or even device failure. The input capacitor helps to filter out noise and ensure stable operation. Using a capacitor with a value outside the recommended range can compromise the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV20084DR2G Overview

Use the download button to access the NCV20084DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV20, or try a keyword search, such as Operational Amplifiers
