NCV20162DR2G - onsemi

Description: AEC-Q100 Qualified; Wide Bandwidth; Low Input Offset Voltage; Rail to Rail Input and Output

Download NCV20162DR2G Model
Schematic

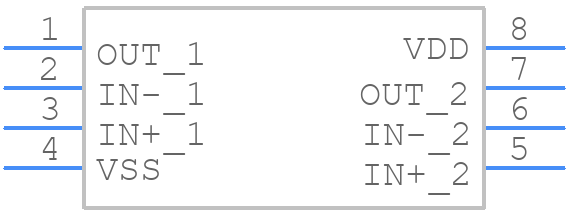

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV20162DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCV20162DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCV20162DR2G Details

  • Manufacturer Part Number:

    NCV20162DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    91 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2600 µV

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    3.5 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    8000

  • Voltage Gain-Min:

    112201.84543

  • Wideband:

    NO

  • Width:

    3.9 mm
