NCV2200SN2T1G - onsemi

Description: Operating Voltage of 0.85 V to 6.0 V; Rail-to-rail Input/Output Performance; Low Supply Current of 10 µA; No Phase Inversion/Glitchless transitioning in or out of Tri-State Mode; Complementary or Open Drain Output Configuration; Available with the Enable Function

Download NCV2200SN2T1G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

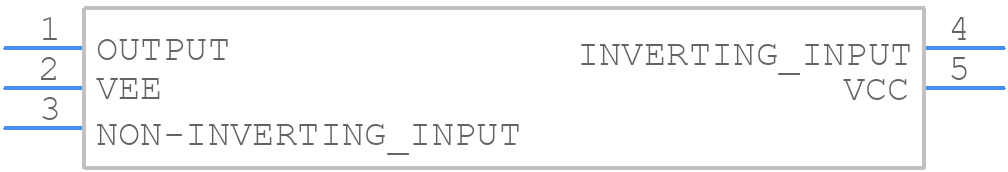

NCV2200SN2T1G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV2200SN2T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOP−5 CASE 483 ISSUE N_1
click to zoom
3D Models
NCV2200SN2T1G - onsemi - 3D model - SOT23 (5-Pin) - TSOP−5 CASE 483 ISSUE N_1
click to zoom

NCV2200SN2T1G Details

  • Manufacturer Part Number:

    NCV2200SN2T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.85

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1100 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.017 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

NCV2200SN2T1G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV2200SN2T1G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces connecting the IC to the capacitors and the load. Additionally, it's recommended to use a shielded inductor and to keep the inductor away from sensitive components.
  • To ensure the NCV2200SN2T1G operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
  • The recommended input capacitor value for the NCV2200SN2T1G is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended.
  • To troubleshoot issues with the NCV2200SN2T1G, check the input voltage, output current, and junction temperature. Verify that the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating. Also, check the PCB layout and component selection to ensure they meet the recommended guidelines.
  • Yes, the NCV2200SN2T1G is suitable for high-reliability applications. It is AEC-Q100 qualified and meets the requirements for automotive and aerospace applications. However, it's essential to follow the recommended PCB layout, component selection, and testing guidelines to ensure the device operates reliably in these applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV2200SN2T1G Overview

Use the download button to access the NCV2200SN2T1G schematic symbol, PCB footprint, and 3D model.
