NCV274DR2G - onsemi

Description: Rail to Rail Output; Wide Bandwidth: 3 MHz; Low Supply Current: 416 µA; Wide Power Supply Range: 2.7 to 36V

Download NCV274DR2G Model
Schematic

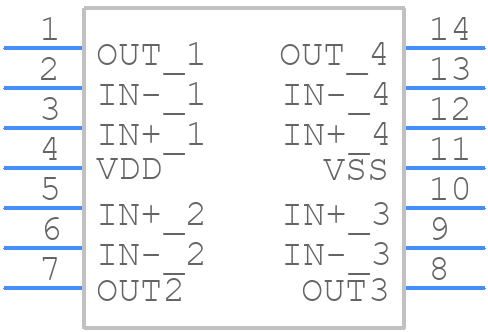

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV274DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−14 NB*
click to zoom
3D Models
NCV274DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−14 NB*
click to zoom

NCV274DR2G Details

  • Manufacturer Part Number:

    NCV274DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Date Of Intro:

    2020-04-28

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.75 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    102 dB

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Input Offset Current-Max (IIO):

    0.000075 µA

  • Input Offset Voltage-Max:

    4000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUT LINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    2.7 V/us

  • Supply Current-Max:

    2.8 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    63095.73445

  • Wideband:

    NO

  • Width:

    3.9 mm
