A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout. Also, consider derating the device's power handling at high temperatures.
The NCV301HSN27T1G has built-in ESD protection diodes. However, it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging. For latch-up prevention, ensure that the device is not exposed to excessive voltage or current, and use a latch-up immune design.
Yes, the NCV301HSN27T1G is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that you follow the recommended operating conditions, and consider additional testing and validation for your specific application.
Use a systematic approach to troubleshoot issues. Check the device's operating conditions, PCB layout, and thermal management. Verify that the device is used within its recommended operating conditions, and check for any signs of physical damage or contamination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV301HSN27T1G Overview

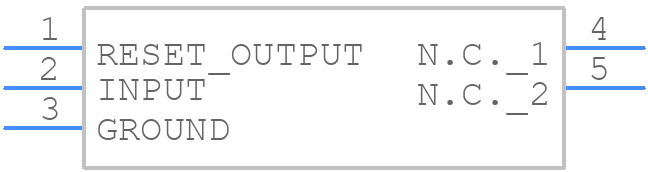

Use the download button to access the NCV301HSN27T1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV30,
or try a keyword search, such as Power Management Circuits
