NCV301LSN33T1G - onsemi

Description: Wide Operating Voltage Range of 0.8 V to 10 V; Complementary or Open Drain Reset Output; Active Low or Active High Reset Output; High Accuracy Under Voltage Threshold of 2.0%; Quiescent Current of 0.5 uA Typical; Pb-Free Packages are Available; NCV Version for Automotive

Download NCV301LSN33T1G Model

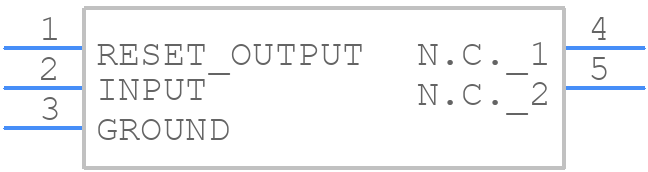

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV301LSN33T1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOP-5+
click to zoom
3D Models
NCV301LSN33T1G - onsemi  - 3D model - SOT23 (5-Pin) - TSOP-5+
click to zoom

NCV301LSN33T1G Details

  • Manufacturer Part Number:

    NCV301LSN33T1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8.21

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.0013 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

NCV301LSN33T1G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring good thermal conduction to the surrounding PCB material. A thermal via array can also be used to improve heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable thermal management system, and consider derating the device's power dissipation. Additionally, ensure that the device is properly soldered and that the PCB is designed to minimize thermal stress.
  • The NCV301LSN33T1G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding personnel, and using ESD-protected workstations.
  • Yes, the NCV301LSN33T1G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly validated and qualified for the specific application.
  • The recommended soldering conditions for the NCV301LSN33T1G include a peak temperature of 260°C, a soldering time of 10 seconds or less, and a soldering method that meets the requirements of IPC J-STD-020. It's also essential to use a solder with a melting point above 217°C.
