NCV3064DR2G - onsemi

Description: Operation up to 40 V Input; Frequency operation up to 150 kHz (250 kHz if used as a controller); Internal thermal Shutdown with hysteresis; Cycle-by-Cycle Current Limiting; Low power standby mode (<100µA)

Download NCV3064DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

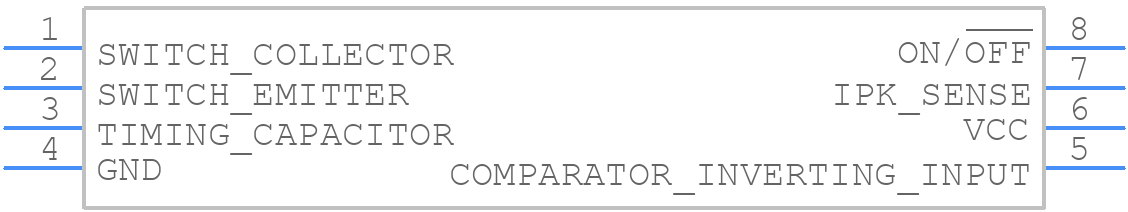

NCV3064DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV3064DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB(1.75mm)
click to zoom
3D Models
NCV3064DR2G - onsemi - 3D model - Small Outline Packages - SOIC−8 NB(1.75mm)
click to zoom

NCV3064DR2G Details

  • Manufacturer Part Number:

    NCV3064DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    190 kHz

  • Technology:

    PMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV3064DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV3064DR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV3064DR2G operates within the recommended junction temperature range, use a thermal pad or heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering and rework.
  • Exceeding the maximum ratings for the NCV3064DR2G can lead to reduced reliability, permanent damage, or even device failure. It's essential to operate the device within the recommended specifications to ensure reliable operation.
  • To troubleshoot issues with the NCV3064DR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes for guidance.
  • Yes, the NCV3064DR2G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to perform thorough testing and validation to ensure the device meets the required standards.
