A good PCB layout for NCV33064DM-5R2G should minimize parasitic inductance and capacitance. Keep the input and output traces short and wide, and use a solid ground plane to reduce noise. Also, place the input and output capacitors close to the device pins.
To ensure output voltage stability, make sure to use the recommended output capacitor value and type, and place it close to the output pin. Also, ensure that the input voltage is within the recommended range, and the device is operated within its specified temperature range.
The maximum ambient temperature that NCV33064DM-5R2G can operate in is 125°C. However, the device's performance and reliability may degrade at higher temperatures, so it's recommended to operate it at a lower temperature if possible.
Yes, NCV33064DM-5R2G is suitable for high-reliability applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's still important to follow proper design and manufacturing practices to ensure the overall reliability of the system.
To troubleshoot issues with NCV33064DM-5R2G, start by checking the input and output voltages, and ensure that they are within the recommended ranges. Also, check the device's operating temperature, and ensure that it's within the specified range. If the issue persists, consult the datasheet and application notes, or contact onsemi's technical support team for assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV33064DM-5R2G Overview

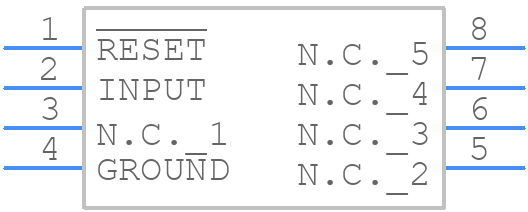

Use the download button to access the NCV33064DM-5R2G schematic symbol, PCB footprint, and 3D model.
