NCV33074ADTBR2G - onsemi

Description: High Slew Rate: 13 V/µs; Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies); Excellent Gain Margin: 12 dB; Wide Bandwidth: 4.5 MHz; Fast Settling Time: 1.1 µs to 0.1%; Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); Output Short Circuit Protection; Large Capacitance Drive Capability: 0 pF to 10,000 pF; Low Total Harmonic Distortion: 0.02%; Excellent Phase Margin: 60° Wide Input Common Mode Voltage Range: Includes Ground (VEE); Wide Single Supply Operation: 3.0 V to 44 V

Download NCV33074ADTBR2G Model

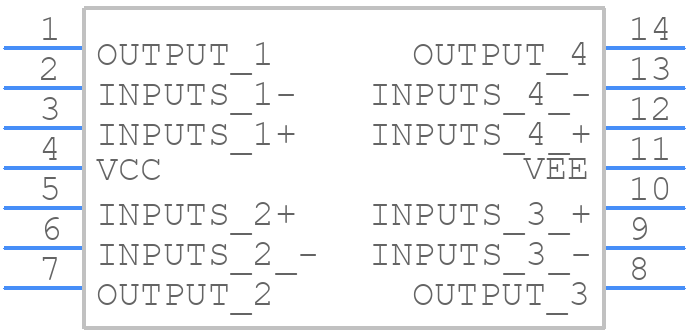

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33074ADTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14 CASE 948G-01 ISSUE B
click to zoom
3D Models
NCV33074ADTBR2G - onsemi  - 3D model - Small Outline Packages - TSSOP14 CASE 948G-01 ISSUE B
click to zoom

NCV33074ADTBR2G Details

  • Manufacturer Part Number:

    NCV33074ADTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.7 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Nom:

    97 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -22 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Slew Rate-Min:

    0.008 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    11.2 mA

  • Supply Voltage Limit-Max:

    22 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    25000

  • Width:

    4.4 mm

NCV33074ADTBR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and avoid overheating the device. Also, ensure that the PCB is designed to withstand high temperatures.
  • The recommended soldering conditions for the NCV33074ADTBR2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. Use a solder with a melting point of 217°C to 220°C.
  • To handle ESD protection for the NCV33074ADTBR2G, use an ESD-protected workstation, wear an ESD strap, and use ESD-protected packaging and handling materials. Avoid touching the device's pins or handling the device in a way that could generate static electricity.
  • The recommended storage conditions for the NCV33074ADTBR2G are: temperature range of -40°C to 150°C, humidity of 60% or less, and protection from direct sunlight and moisture. Store the device in its original packaging or in a dry, clean environment.
