NCV33079DR2G - onsemi

Description: Low Total Harmonic Distortion: 0.002%; Low T.C. of Input Offset Voltage: 2.0 µV/ C; Low Input Offset Voltage: 0.15 mV; Excellent Frequency Stability; ESD Diodes Provided on the Inputs; Dual Supply Operation: +/-5.0 V to +/-18 V; Large Output Voltage Swing: +14.1 V/ -14.6 V; High Gain Bandwidth Product: 16 MHz; Low Voltage Noise: 4.5 nV/ Hz; High Open Loop AC Gain: 800 @ 20 kHz; High Slew Rate: 7.0 V/µs

Download NCV33079DR2G Model

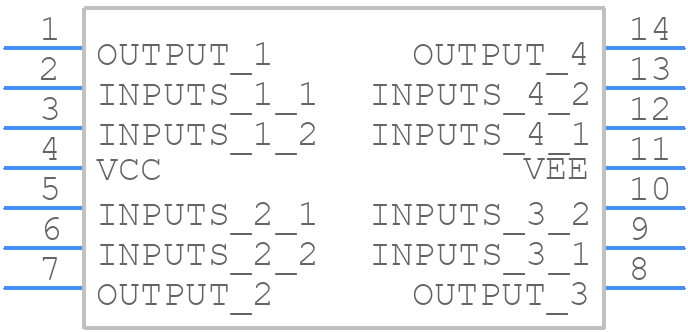

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33079DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−14 NB CASE 751A−03 ISSUE K
click to zoom
3D Models
NCV33079DR2G - onsemi  - 3D model - Small Outline Packages - SOIC−14 NB CASE 751A−03 ISSUE K
click to zoom

NCV33079DR2G Details

  • Manufacturer Part Number:

    NCV33079DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.68

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.75 µA

  • Common-mode Reject Ratio-Min:

    80 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    REEL

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    5 V/us

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    16000

  • Voltage Gain-Min:

    17780

  • Wideband:

    NO

  • Width:

    3.9 mm

NCV33079DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for NCV33079DR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place a 1uF ceramic capacitor in parallel with a 10uF electrolytic capacitor. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
  • The maximum ambient temperature that NCV33079DR2G can operate in is 105°C. However, the device's performance and reliability may degrade at high temperatures, so it is recommended to operate the device at a temperature below 85°C for optimal performance.
  • Yes, NCV33079DR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
  • To troubleshoot issues with NCV33079DR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Check the output voltage ripple and noise, and ensure that the output capacitance is sufficient. If the issue persists, consult the datasheet and application notes for further guidance.
