NCV33161DMR2G - onsemi

Description: Low Standby Current; Positive and Negative Voltage Detection; Over, Under, and Window Voltage Detection; Open Collector Outputs for Enhanced Device Flexibility; Pinned Out 2.54 V Reference with Current Limit Protection; Unique Mode Select Input Allows Channel Programming; Fully Functional at 2.0 V for Positve Voltage Sensing and 4.0 V for Negative Voltage Sensing; Pb-Free Packages are Available; NCV Version for Automotive

Download NCV33161DMR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

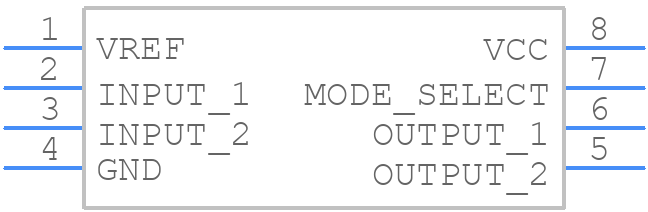

NCV33161DMR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV33161DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom
3D Models
NCV33161DMR2G - onsemi - 3D model - Small Outline Packages - MICRO8 CASE 846A-02 ISSUE H
click to zoom

NCV33161DMR2G Details

  • Manufacturer Part Number:

    NCV33161DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BIPOLAR UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCV33161DMR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCV33161DMR2G involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it away from sensitive components can help reduce EMI.
  • To ensure the NCV33161DMR2G operates within the recommended junction temperature range, use a thermal pad or heat sink, and ensure good airflow around the device. Also, avoid overheating the device during soldering and rework.
  • Exceeding the maximum ratings of the NCV33161DMR2G can lead to reduced reliability, permanent damage, or even device failure. It's essential to operate the device within the recommended specifications to ensure reliable operation.
  • To troubleshoot issues with the NCV33161DMR2G, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes or contact onsemi support.
  • Yes, the NCV33161DMR2G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to consult with onsemi support to ensure the device meets the specific requirements of your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV33161DMR2G Overview

Use the download button to access the NCV33161DMR2G schematic symbol, PCB footprint, and 3D model.
