Part Image

NCV33204DR2G - onsemi

Description: Low Supply Current (ID = 0.9 mA, Typ); Extended Operating Temperature Ranges (-40° to +105°C and -55° to +125°C); Output Voltage Swings within 50 mV of both Rails; Input Voltage Range Includes both Supply Rails; Low Voltage, Single Supply Operation (+1.8 V and Ground to +12 V and Ground); No Phase Reversal on the Output for Over-driven Input Signals; High Output Current (ISC = 80 mA, Typ); Typical Gain Bandwidth Product = 2.2 MHz; 600 W Output Drive Capability

Download NCV33204DR2G Model

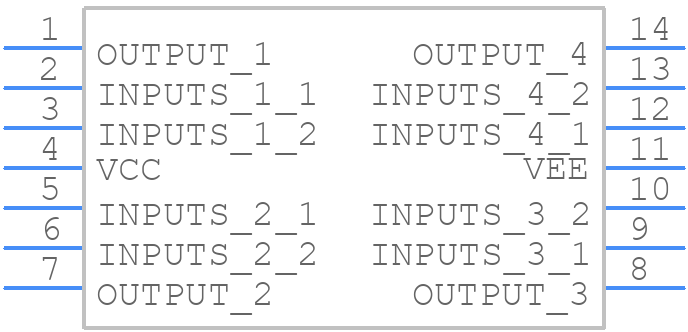

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33204DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV33204DR2G
click to zoom
3D Models
NCV33204DR2G - onsemi  - 3D model - Small Outline Packages - NCV33204DR2G
click to zoom

NCV33204DR2G Details

  • Manufacturer Part Number:

    NCV33204DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-8

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.75

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.2 µA

  • Common-mode Reject Ratio-Min:

    60 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.1 µA

  • Input Offset Voltage-Max:

    17000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.5 V/us

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    4.5 mA

  • Supply Voltage Limit-Max:

    13 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    2200

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    3.9 mm

NCV33204DR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and that the input voltage is above the UVLO threshold (around 2.5V) during start-up. Also, add a soft-start circuit to limit the inrush current during start-up.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Choose an inductor value based on the desired output voltage, input voltage, and switching frequency. A higher inductor value can reduce ripple current but increases the physical size of the inductor.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended. This helps to filter out input voltage noise and reduce ripple.
