Part Image

NCV33274ADG - onsemi

Description: • Input Offset Voltage Trimmed to 100 V (Typ) • Low Input Bias Current: 300 nA • Low Input Offset Current: 3.0 nA • High Input Resistance: 16 M • Low Noise: 18 nV/ √ Hz @ 1.0 kHz • High Gain Bandwidth Product: 24 MHz @ 100 kHz • High Slew Rate: 10 V/s • Power Bandwidth: 160 kHz

Download NCV33274ADG Model

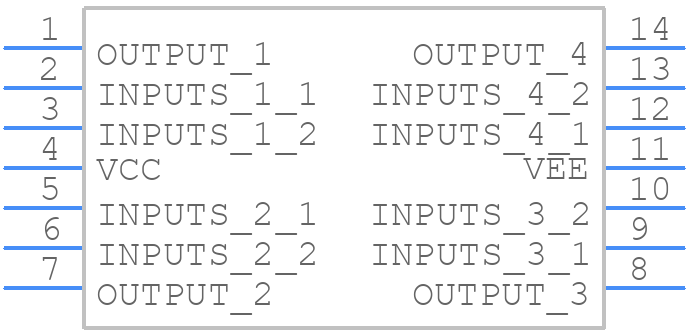

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV33274ADG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom
3D Models
NCV33274ADG - onsemi  - 3D model - Small Outline Packages - SOIC-14 NB CASE751A-03 ISSUE L
click to zoom

NCV33274ADG Details

  • Manufacturer Part Number:

    NCV33274ADG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-14 NB

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.8 µA

  • Bias Current-Max (IIB) @25C:

    0.65 µA

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Offset:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TAPE AND REEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    10 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Unity Gain BW-Nom:

    5500

  • Voltage Gain-Min:

    19950

  • Width:

    3.9 mm

NCV33274ADG Frequently Asked Questions (FAQs)

  • For optimal thermal performance, it is recommended to have a solid copper plane under the device, and to use thermal vias to connect the plane to the thermal pad of the device. Additionally, keeping the PCB layer stack-up symmetrical and using a thermal relief pattern around the device can help to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, and to consider derating the device's power dissipation according to the ambient temperature. Additionally, using a heat sink or thermal interface material can help to reduce the device's junction temperature.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is 10uF to 22uF, depending on the specific application requirements and input voltage ripple.
  • To troubleshoot issues with the OCP feature, check the device's datasheet for the OCP threshold and response time. Verify that the input voltage and current are within the recommended operating range, and that the device is properly configured for OCP. Use an oscilloscope to monitor the input current and voltage, and check for any signs of oscillation or instability.
  • The recommended output capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is 10uF to 47uF, depending on the specific application requirements and output voltage ripple.
