Description:Power Bandwidth: 160 kHz; Unity Gain Stable: w/Capacitance Loads to 500 pF; ESD Diodes Provide Added Protection to the Inputs; Input Offset Voltage Trimmed to 100 µV (Typ); Low Noise: 18 nV/ (sq. root Hz) @ 1.0 kHz; Low Input Bias Current: 300 nA; Single or Split Supply Operation: +3.0 V to +36 V or +/-1.5 V to +/-18 V; Excellent Frequency Stability; Large Output Voltage Swing: +14.1 V/ -14.6 V; Low Total Harmonic Distortion: 0.003%; Low Input Offset Current: 3.0 nA; High Slew Rate: 10 V/µs; High Input Resi
A good PCB layout for the NCV33274ADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces carrying high-frequency signals. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
The inductor value depends on the output voltage, input voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet (e.g., 1.5 μH for the NCV33274ADR2G). Then, adjust the value based on the specific application requirements, such as output voltage ripple and efficiency.
The NCV33274ADR2G is rated for operation from -40°C to 150°C (junction temperature). However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. A good rule of thumb is to derate the maximum ambient temperature by 10-20°C to ensure reliable operation.
To ensure stability, follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, make sure to decouple the input and output pins properly, and use a stable input voltage source. If oscillations occur, check the PCB layout and component values, and consider adding a small capacitor (e.g., 10 nF) between the VIN and GND pins.
The NCV33274ADR2G is rated for a maximum output current of 2 A. However, the actual output current capability depends on the input voltage, output voltage, and thermal design of the system. Be sure to check the power dissipation and thermal design to ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV33274ADR2G Overview

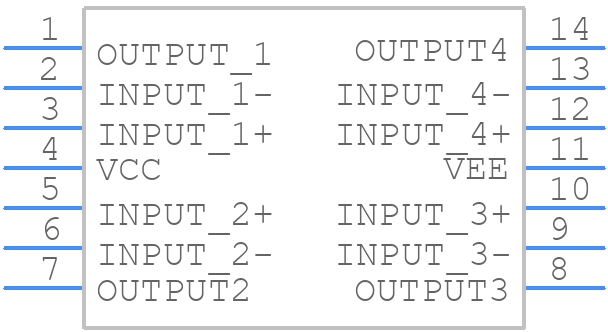

Use the download button to access the NCV33274ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV33,
or try a keyword search, such as Operational Amplifiers
