Description:High Slew Rate: 13 V/µs; Large Output Voltage Swing: -14.7 V to +14 V (with +/-15 V Supplies); Excellent Gain Margin: 12 dB; Wide Bandwidth: 4.5 MHz; Fast Settling Time: 1.1 µs to 0.1%; Low Input Offset Voltage: 3.0 mV Maximum (A Suffix); Output Short Circuit Protection; Large Capacitance Drive Capability: 0 pF to 10,000 pF; Low Total Harmonic Distortion: 0.02%; Excellent Phase Margin: 60° Wide Input Common Mode Voltage Range: Includes Ground (VEE); Wide Single Supply Operation: 3.0 V to 44 V
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, make sure to follow the recommended operating conditions, use a suitable heat sink, and ensure good airflow around the device. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To protect the device from electrical overstress (EOS), use a suitable voltage regulator, add transient voltage suppressors (TVS) or zener diodes to clamp voltage spikes, and ensure that the device is operated within the recommended voltage range.
To minimize EMI and RFI, use a shielded enclosure, keep the device away from antennas and other EMI sources, and use a common-mode choke or ferrite beads to filter out high-frequency noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV34074VDR2G Overview

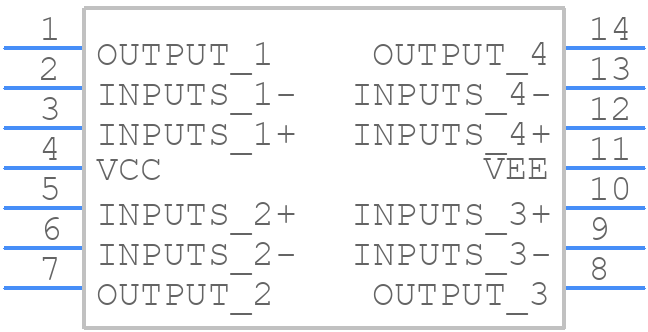

Use the download button to access the NCV34074VDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV34,
or try a keyword search, such as Operational Amplifiers
