A good PCB layout for optimal thermal performance would involve placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using a thermal interface material (TIM) to fill any gaps between the device and the heat sink.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection during handling and assembly, it's recommended to follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, or ESD bag. Additionally, ensure that the device is handled in a static-safe environment, and avoid touching the device pins or leads.
The recommended soldering conditions for the NCV4269ADW50R2G are a peak temperature of 260°C, with a soldering time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV4269ADW50R2G Overview

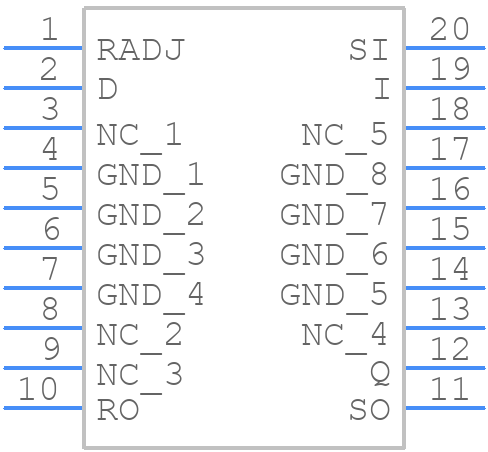

Use the download button to access the NCV4269ADW50R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV42,
or try a keyword search, such as Linear Regulator ICs
