Description:Adjustable Voltage Version (from 3.3 V to 20 V) 3% Output Voltage; Enable Input (3.3 V Logic Compatible Thresholds); Adjustable Current Limit (from 100 µA to 20 mA) with 10% Accuracy; Protection: Current Limitation, Thermal Shutdown, Reverse Input Voltage
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
The NCV47551DAJR2G has built-in ESD protection, but it's still important to follow proper ESD handling and assembly procedures to prevent damage. Use ESD-safe materials and equipment, and ensure that the device is handled and stored in an ESD-protected environment.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and feedback resistors. Ensure that the feedback resistors are correctly selected and that the output voltage is within the specified range. Also, check for any signs of overheating or excessive current draw.
When paralleling multiple devices for higher current output, ensure that each device has its own input capacitor and that the output capacitors are properly sized. Also, ensure that the devices are properly synchronized and that the output currents are properly balanced.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV47551DAJR2G Overview

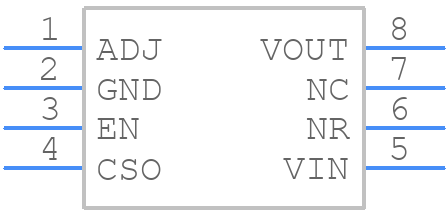

Use the download button to access the NCV47551DAJR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV47,
or try a keyword search, such as Linear Regulator ICs
