Description:Enable Input; Adjustable Current Limit (from 10 mA to 350 mA)with 10% accuracy; AEC-Q100 Qualified; Protection: Current Limitation, Thermal Shutdown, Reverse Input Voltage; Adjustable Voltage Version (from 5 V to 20 V) 6% Output Voltage
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and ensure that the thermal pad is connected to a solid ground plane.
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
The recommended soldering conditions for NCV47700PDAJR2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. Use a solder with a melting point of 217°C to 220°C. Avoid using excessive soldering temperature or time, as this can damage the device.
To handle ESD protection for NCV47700PDAJR2G, ensure that the device is handled and stored in an ESD-protected environment. Use ESD-protective packaging and handling materials, and ground yourself before handling the device. Avoid touching the device's pins or leads, and use an ESD wrist strap or mat when handling the device.
The recommended storage conditions for NCV47700PDAJR2G are: temperature range of -40°C to 30°C, relative humidity of 60% or less, and protection from direct sunlight and moisture. Store the device in its original packaging or in a dry, ESD-protected environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV47700PDAJR2G Overview

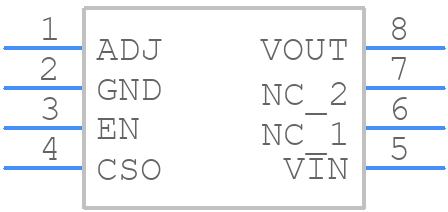

Use the download button to access the NCV47700PDAJR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV47,
or try a keyword search, such as Linear Regulator ICs
