NCV47710DAJR2G - onsemi

Description: Obsolete - LDO Regulator, 350 mA, Low Dropout, High PSRR

Download NCV47710DAJR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

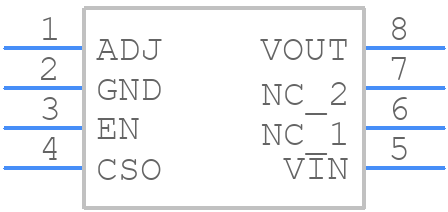

Symbol
NCV47710DAJR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV47710DAJR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCV47710DAJR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCV47710DAJR2G Details

  • Manufacturer Part Number:

    NCV47710DAJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.105

  • Load Regulation-Max(%):

    2.8%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.35 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

NCV47710DAJR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A minimum of 2oz copper thickness is recommended for the thermal pad.
  • To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
  • The NCV47710DAJR2G has built-in ESD protection, but it is still recommended to follow proper ESD handling and storage procedures to prevent damage. A human body model (HBM) of 2kV and a machine model (MM) of 200V are recommended for ESD protection.
  • Yes, the NCV47710DAJR2G is AEC-Q100 qualified, making it suitable for use in automotive applications. However, it is essential to ensure that the device is operated within its specified temperature range and that proper thermal design and layout guidelines are followed.
  • The recommended soldering profile for the NCV47710DAJR2G involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It is essential to follow the recommended soldering profile to prevent damage to the device.
