NCV47710PDAJR2G - onsemi

Description: Adjustable Voltage Version (from 5 V to 20 V) ± 6% Output Voltage for ±3% Output Voltage Accuracy see NCV47711 Specification • Enable Input (3.3 V Logic Compatible Thresholds) for 5 V Logic Compatible Thresholds see NCV47700 or NCV47701 Specification • Adjustable Current Limit (from 10 mA to 350 mA) with 10% accuracy

Download NCV47710PDAJR2G Model

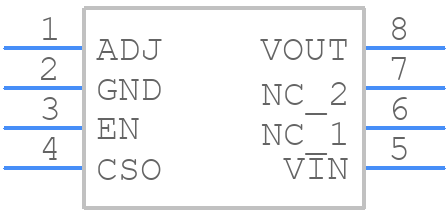

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV47710PDAJR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB
click to zoom
3D Models
NCV47710PDAJR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB
click to zoom

NCV47710PDAJR2G Details

  • Manufacturer Part Number:

    NCV47710PDAJR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 EP

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AC

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.7

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.5 V

  • Dropout Voltage1-Nom:

    0.25 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max (%/V):

    0.105

  • Load Regulation-Max(%):

    2.8%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.35 A

  • Output Voltage1-Max:

    20 V

  • Output Voltage1-Min:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCV47710PDAJR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
  • The NCV47710PDAJR2G has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Additionally, consider adding external ESD protection devices if the application requires it.
  • To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the specific overcurrent protection threshold and response time. Verify that the device is properly configured and that the current sense resistor is correctly sized. Also, check for any external circuitry that may be interfering with the overcurrent protection feature.
  • For high-reliability applications, consider the device's FIT (Failure In Time) rate, and ensure that the device is operated within its specified temperature range. Additionally, follow proper design and layout guidelines, and consider using redundancy or error correction mechanisms to ensure reliable operation.
