Description:Adjustable Current Limits: up to 350 mA; Diagnostic Features: Short to Battery and Open Load detection in OFF State Internal Components for OFF State Diagnostics Open Collector Flag Output; Output Current per Channel: up to 250 mA; Protection: Current Limitation, Thermal Shutdown, Reverse Input Voltage; Two Independent Enable Inputs (3.3 V Logic Compatible)
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities at higher temperatures.
The NCV47822PAAJR2G has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing to prevent damage. Additionally, consider adding external ESD protection devices if the device will be exposed to harsh environments.
Yes, the NCV47822PAAJR2G is suitable for high-reliability and automotive applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the expected behavior, verify that the device is properly configured, and use a current probe or oscilloscope to measure the current and voltage waveforms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV47822PAAJR2G Overview

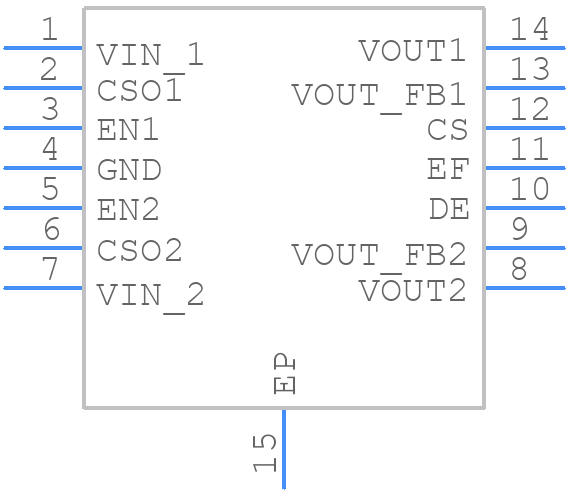

Use the download button to access the NCV47822PAAJR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV47,
or try a keyword search, such as Peripheral Drivers
