NCV48920PA50R2G - onsemi

Description: Obsolete - LDO Regulator, 100 mA, Low Dropout

Download NCV48920PA50R2G Model

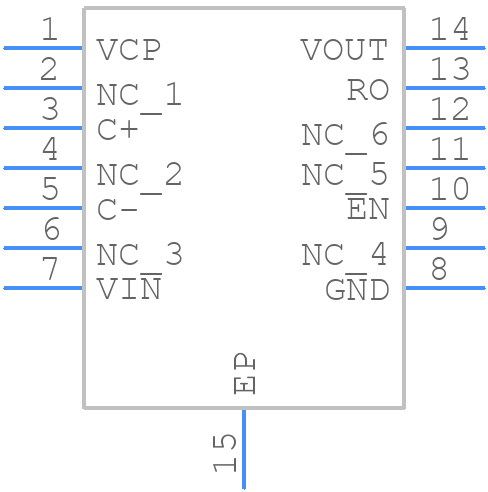

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV48920PA50R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NCV47722PDAJR2G
click to zoom
3D Models
NCV48920PA50R2G - onsemi  - 3D model - Small Outline Packages - NCV47722PDAJR2G
click to zoom

NCV48920PA50R2G Details

  • Manufacturer Part Number:

    NCV48920PA50R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-14 EP

  • Package Description:

    HTSSOP-14

  • Manufacturer Package Code:

    948AW

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-03-17

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT HAS 3 TO 6.3V SUPPLY VOLTAGE IN BUCK MODE

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    11.8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

NCV48920PA50R2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
  • The recommended soldering conditions for NCV48920PA50R2G are a peak temperature of 260°C, a dwell time of 30-60 seconds, and a soldering process that follows the IPC J-STD-020D standard.
  • To troubleshoot issues related to overvoltage protection, check the input voltage levels, ensure that the device is properly configured, and verify that the overvoltage protection threshold is set correctly. Also, check for any signs of physical damage or electrical overstress.
  • The recommended input capacitor selection for NCV48920PA50R2G involves choosing a capacitor with a suitable voltage rating, capacitance value, and ESR. A ceramic capacitor with an X7R or X5R dielectric and a voltage rating of at least 50V is recommended.
