Description:Fast Transient Response; Programmable Soft-Start; Open Drain Power Good Output; Stable with Any Type of Output Capacitor; 115mV typical dropout at the full 3.0 A load; 0.8V to 3.6V Output Voltage Range
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material (TIM) between the device and heat sink, and follow the recommended PCB layout guidelines. Also, consider using a thermal shield or heat spreader to reduce thermal resistance.
Critical timing parameters include the clock frequency, clock duty cycle, and setup/hold times. Ensure proper synchronization by using a clock signal with a stable frequency and duty cycle, and by meeting the setup and hold time requirements specified in the datasheet.
Use proper PCB layout techniques, such as separating analog and digital circuits, using shielding, and minimizing loop areas. Also, ensure that the device is properly decoupled and that the power supply is well-regulated to reduce EMI emissions.
Use a high-impedance probe or a differential probe to measure signals, and ensure that the measurement equipment is properly calibrated. Also, use a signal generator or a function generator to provide a stable input signal, and follow the recommended test procedures outlined in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV59744MNADJTBG Overview

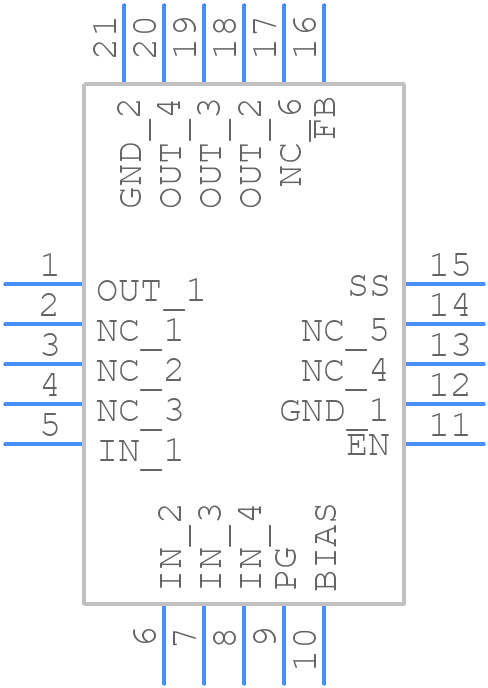

Use the download button to access the NCV59744MNADJTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV59,
or try a keyword search, such as Linear Regulator ICs
