Description:Dual H−bridge for 2−phase Stepper Motors; Programmable Peak−current up to 800 mA; On−chip Current Translator; SPI Interface with Daisy Chain Capability; 7 Step Modes from Full−step up to 32 Micro−steps; Fully Integrated Current−sensing and Current−regulation; On Chip Stall Detection; PWM Current Control with Automatic Selection of Fast and Slow Decay; Fixed PWM Frequency; Active Fly−back Diodes; Full Output Protection and Diagnosis; Thermal Warning and Shutdown; Compatible with 3.3 V Microcontrollers, 5 V T
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
The recommended soldering conditions for NCV70514MW003BR2G include a peak temperature of 260°C, a soldering time of 10-30 seconds, and a soldering method that follows the IPC J-STD-020 standard.
To troubleshoot issues related to overvoltage protection, check the input voltage levels, ensure that the device is properly configured, and verify that the overvoltage protection threshold is set correctly. Also, check for any signs of physical damage or electrical overstress.
Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and increased risk of failure. It's essential to follow the recommended operating conditions to ensure reliable operation and to avoid voiding the device's warranty.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV70514MW003BR2G Overview

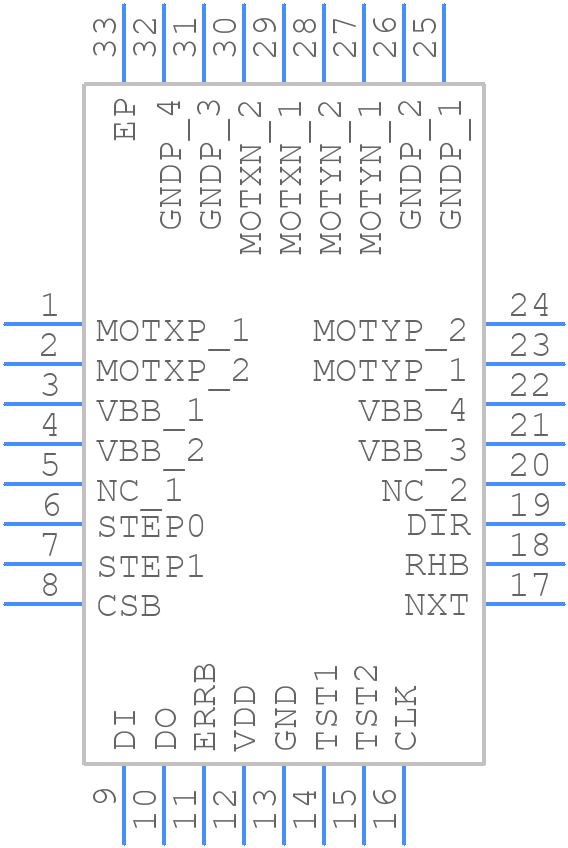

Use the download button to access the NCV70514MW003BR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV70,
or try a keyword search, such as Motion Control Electronics
