NCV70514MW007AR2G - onsemi

Description: Dual H−bridge for 2−phase Stepper Motors; Programmable Peak−current up to 800 mA; On−chip Current Translator; SPI Interface with Daisy Chain Capability; 7 Step Modes from Full−step up to 32 Micro−steps; Fully Integrated Current−sensing and Current−regulation; On Chip Stall Detection; PWM Current Control with Automatic Selection of Fast and Slow Decay; Fixed PWM Frequency; Active Fly−back Diodes; Full Output Protection and Diagnosis; Thermal Warning and Shutdown; Compatible with 3.3 V Microcontrollers, 5 V T

Download NCV70514MW007AR2G Model

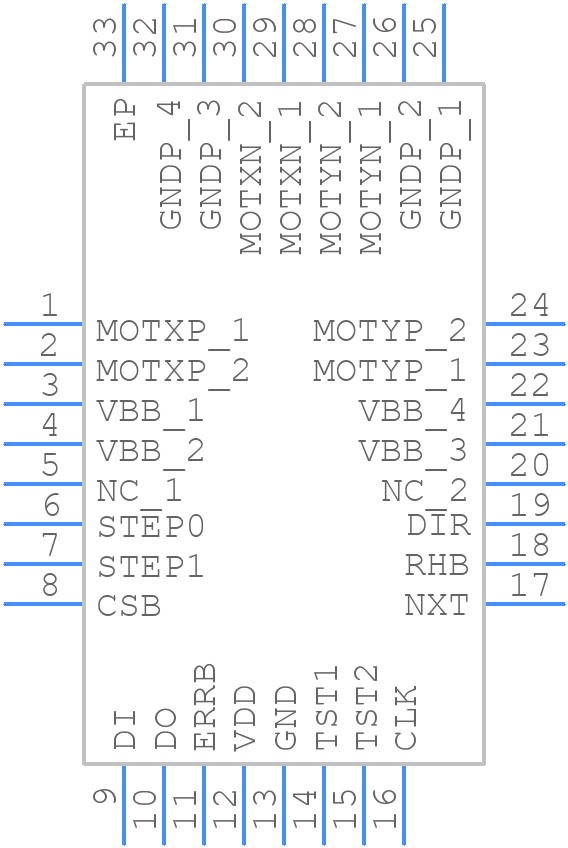

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCV70514MW007AR2G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - .QFNW32 5x5, 0.5P CASE 484AB ISSUE D
click to zoom
3D Models
NCV70514MW007AR2G - onsemi  - 3D model - Quad Flat No-Lead - .QFNW32 5x5, 0.5P CASE 484AB ISSUE D
click to zoom

NCV70514MW007AR2G Details

  • Manufacturer Part Number:

    NCV70514MW007AR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW-32

  • Manufacturer Package Code:

    484AB

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCV70514MW007AR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
  • The NCV70514MW007AR2G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within its specified voltage and current ranges, and that the power supply is properly decoupled.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the device is properly configured and that the output capacitor is of sufficient value. Also, check for any signs of overheating or excessive current draw.
  • The recommended input capacitor is a 10uF ceramic capacitor, and the recommended output capacitor is a 22uF ceramic capacitor. However, the actual capacitor values may vary depending on the specific application and requirements.
