A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to consider the device's thermal derating. Additionally, ensure that the device is operated within its specified temperature range.
The NCV70514MW007R2G has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. For latch-up prevention, ensure that the device is operated within its specified voltage and current ranges, and that the input signals are properly filtered and clamped.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback loop configuration. Ensure that the device is operated within its specified input voltage range, and that the output load is within the device's current capability. Also, verify that the feedback loop is properly configured and compensated.
When assembling and soldering the NCV70514MW007R2G, ensure that the PCB is designed with a suitable land pattern, and that the device is handled and stored properly to prevent ESD damage. Follow the recommended soldering profile and temperature range to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCV70514MW007R2G Overview

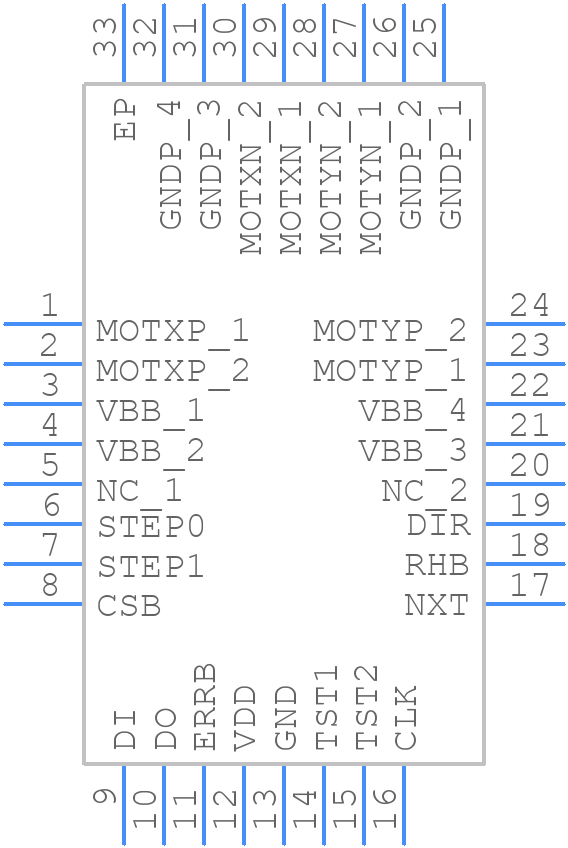

Use the download button to access the NCV70514MW007R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV70,
or try a keyword search, such as Motion Control Electronics
