NCV70517MW002R2G - onsemi

Description: Dual H−bridge for 2−phase Stepper Motors; Programmable Peak−current up to 800 mA; On−chip Current Translator; SPI Interface; Low Temperature Boost Current up to 1100 mA; 5 Step Modes from Full−step up to 16 Micro−steps; Fully Integrated Current−sensing and Current−regulation; Back−EMF Measurement; On Chip Stall Detection; PWM Current Control with Automatic Selection of Fast and Slow Decay; Fixed PWM Frequency; Active Fly−back Diodes; Full Output Protection and Diagnosis; Thermal Warning and Shutdown; Compat

Download NCV70517MW002R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

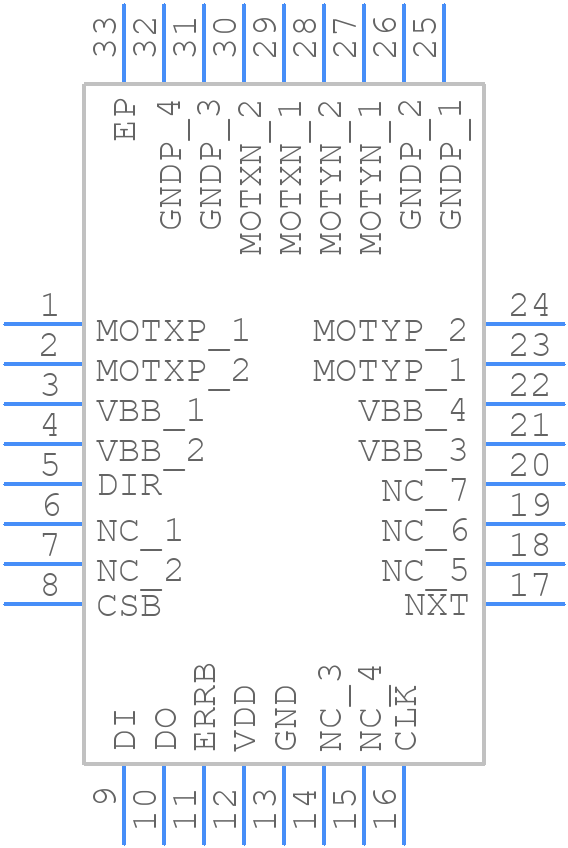

NCV70517MW002R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCV70517MW002R2G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFNW32
click to zoom
3D Models
NCV70517MW002R2G - onsemi - 3D model - Quad Flat No-Lead - QFNW32
click to zoom

NCV70517MW002R2G Details

  • Manufacturer Part Number:

    NCV70517MW002R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFNW-32

  • Package Description:

    QFN-32

  • Manufacturer Package Code:

    484AB

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    29 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCV70517MW002R2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a shielded enclosure, keep the device away from antennas and high-frequency sources, and ensure proper grounding and decoupling of the device. Follow onsemi's EMC guidelines for more information.
  • The maximum allowed voltage on the input pins is 6.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5.5V for reliable operation.
  • The NCV70517MW002R2G is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult onsemi's application notes for thermal management guidelines.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly decoupled and that the output capacitor is of sufficient value. Consult onsemi's application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCV70517MW002R2G Overview

Use the download button to access the NCV70517MW002R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCV70, or try a keyword search, such as Motion Control Electronics
